Hjem Produkter Tilslutninger, sammenkoblinger FFC, FPC (Flat Flexible) stik~~XF2M-5015-1A-R100~~

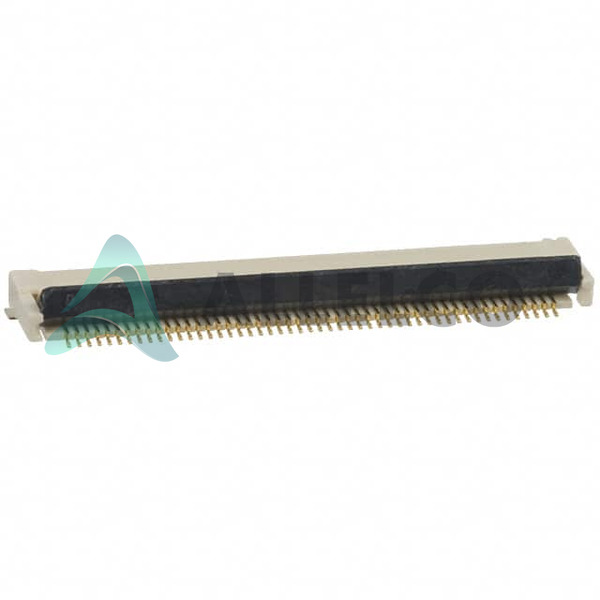

Billedet kan være repræsentation.
Se specifikationer for produktoplysninger.

~~Favorit~~

EXPRESS -MULIGHED

Betalingsmetode

XF2M-5015-1A-R100 - Omron Electronics Inc-EMC Div

Fabrikant Varenummer: XF2M-5015-1A-R100

Fabrikant: Omron Electronic Components

Allelco Varenummer: 98D-XF2M-5015-1A-R100

Garanti: 1 år Allelco -garanti - Find ud af mere

Delbeskrivelse: CONN FPC 50POS 0.5MM R/A

Pakke: Tape & Reel (TR)

Datablad: 1.XF2M-5015-1A-R1.pdf ...

Dataark
XF2M Series Datasheet.pdf XF2M Datasheet.pdf

Andre relaterede dokumenter
How to Read Date Codes.pdf

PCN forældelse/ EOL
Multiple Series Dec/2017.pdf XF2M XF3M Reactivate 17/Oct/2017.pdf

HTML -datablad
XF2M Datasheet.pdf

RoHs Status: RoHS Overensstemmelse

~~Sammenligne~~

Vores certificering

På lager: 32290

Pris per stk: $1.89
Subtotal: $0.00

Vil du have en bedre pris?
Tilføj til CART og Indsend RFQ Nu, vi kontakter dig straks.

Antal	Pris per stk	Ext.Pris
1+	$1.89	$1.89
200+	$0.731	$146.20
500+	$0.706	$353.00
1000+	$0.693	$693.00

Ovenstående priser inkluderer ikke skatter og fragtpriser, der beregnes på ordre -siderne.

EXPRESS -MULIGHED

Betalingsmetode

Vores certificering

specifikationer

XF2M-5015-1A-R100 Tekniske specifikationer
Omron Electronics Inc-EMC Div - XF2M-5015-1A-R100 tekniske specifikationer, attributter, parametre og dele med lignende specifikationer som Omron Electronics Inc-EMC Div - XF2M-5015-1A-R100

Produktattribut	Attributværdi
Fabrikant	Omron Electronic Components
Spændingsbedømmelse	50V
Afslutning	Solder
Serie	XF2M
Tonehøjde	0.020" (0.50mm)
Pakke	Tape & Reel (TR)
Driftstemperatur	-30°C ~ 85°C
Antal positioner	50
Monteringstype	Surface Mount, Right Angle
Parring cykler	20
Materiale Brandbarhed Rating	UL94 V-0
Låsningsfunktion	Rotary Lock, Backlock
Boligmateriale	Liquid Crystal Polymer (LCP), Halogen Free
Husets farve	Natural

Produktattribut	Attributværdi
Højde over bord	0.083" (2.10mm)
Flat Flex Type	FPC
Funktioner	-
FFC, FCB Tykkelse	0.30mm
Aktuel rating (ampere)	0.5A
Kontaktmateriale	Copper Alloy
Kontakt Afslut tykkelse	5.90µin (0.150µm)
Kontakt Afslut	Gold
Connector / Contact Type	Contacts, Top and Bottom
Kabel Slut Type	Tapered
Basisproduktnummer	XF2M
Aktuator Materiale	Liquid Crystal Polymer (LCP), Halogen Free
Aktuator Farve	Black

Miljø- og eksportklassifikationer

ATTRIBUT	BESKRIVELSE
RoHs Status	RoHS Overensstemmelse
Fugtfølsomhedsniveau (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051

Dele med lignende specifikationer

De tre dele til højre har lignende specifikationer som Omron Electronics Inc-EMC Div XF2M-5015-1A-R100.

Produktattribut
Varenummer	XF2M-6015-1AH-R100	XF2M-4515-1A-R100	XF2M-4015-1A-R100	XF2M-5015-1A-R500
Fabrikant	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div
Boligmateriale	-	-	-	-
Serie	-	-	-	-
Højde over bord	-	-	-	-
FFC, FCB Tykkelse	-	-	-	-
Aktuel rating (ampere)	-	-	-	-
Spændingsbedømmelse	-	-	-	-
Aktuator Farve	-	-	-	-
Funktioner	-	-	-	Simultaneous Sampling
Kontaktmateriale	-	-	-	-
Afslutning	-	-	-	-
Låsningsfunktion	-	-	-	-
Antal positioner	-	-	-	-
Kontakt Afslut	-	-	-	-
Pakke	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Kontakt Afslut tykkelse	-	-	-	-
Husets farve	-	-	-	-
Flat Flex Type	-	-	-	-
Tonehøjde	-	-	-	-
Materiale Brandbarhed Rating	-	-	-	-
Driftstemperatur	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Connector / Contact Type	-	-	-	-
Basisproduktnummer	-	DAC34H84	MAX500	ADS62P42
Aktuator Materiale	-	-	-	-
Parring cykler	-	-	-	-
Kabel Slut Type	-	-	-	-
Monteringstype	-	Surface Mount	Through Hole	Surface Mount
